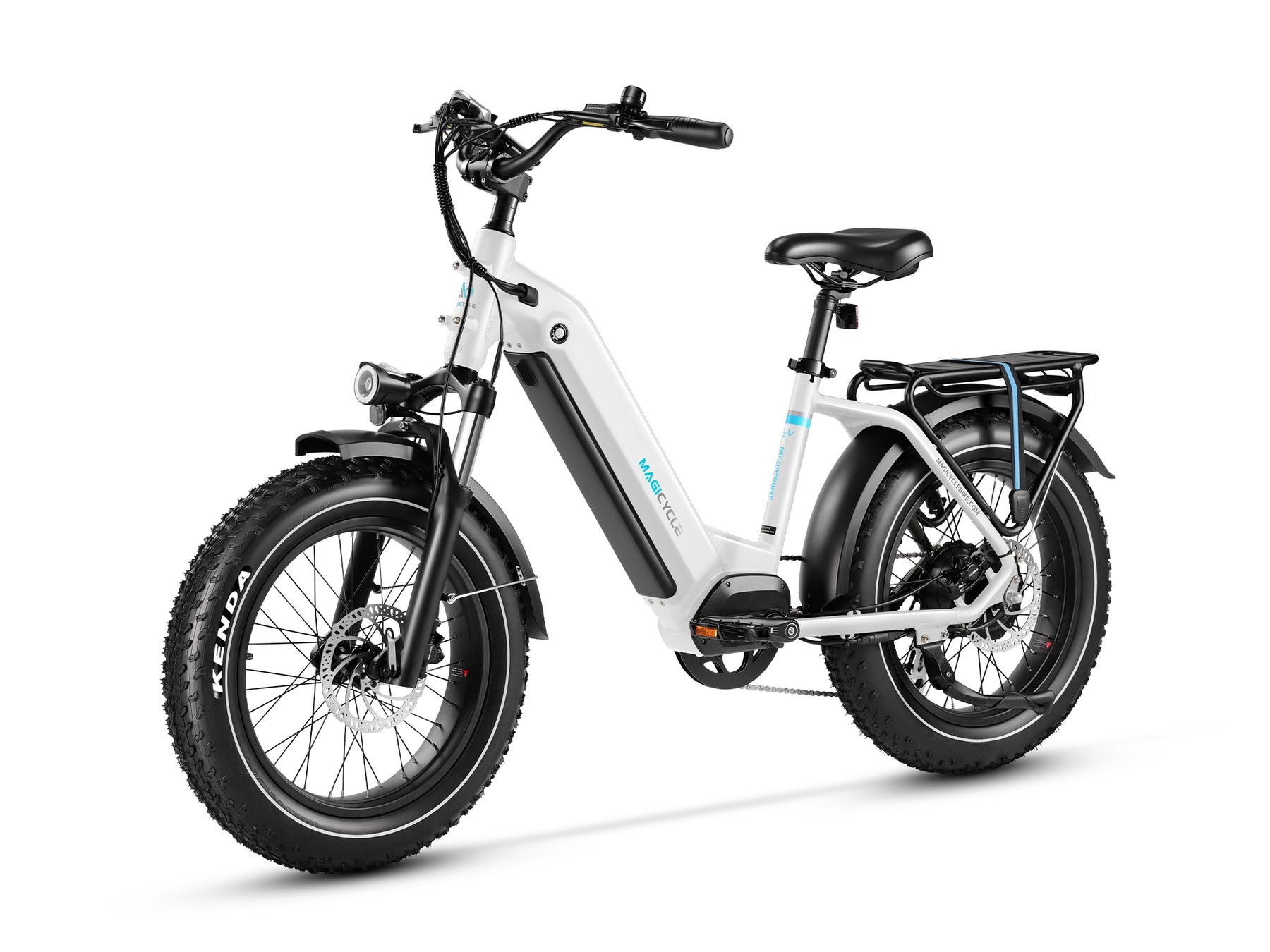

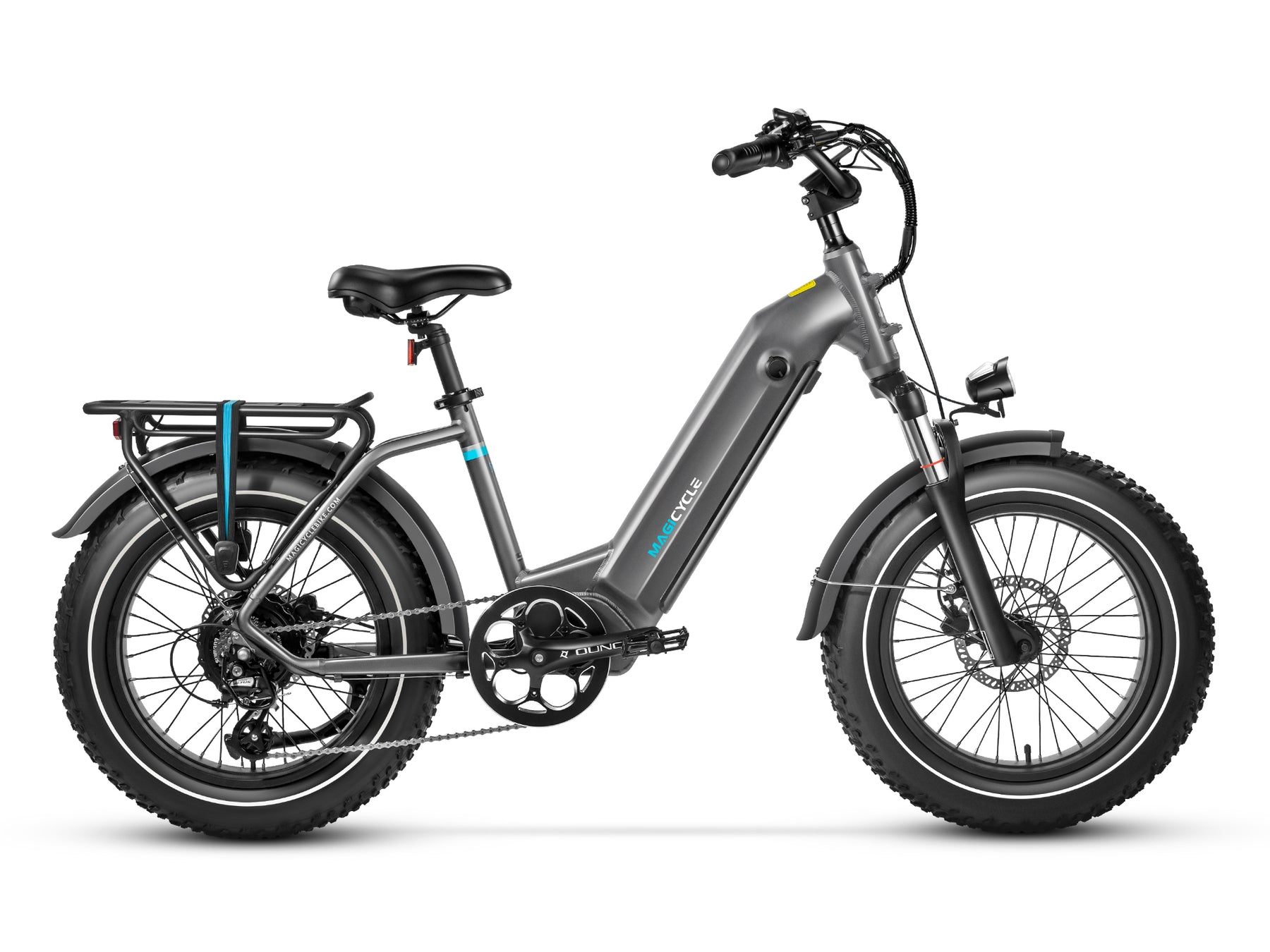

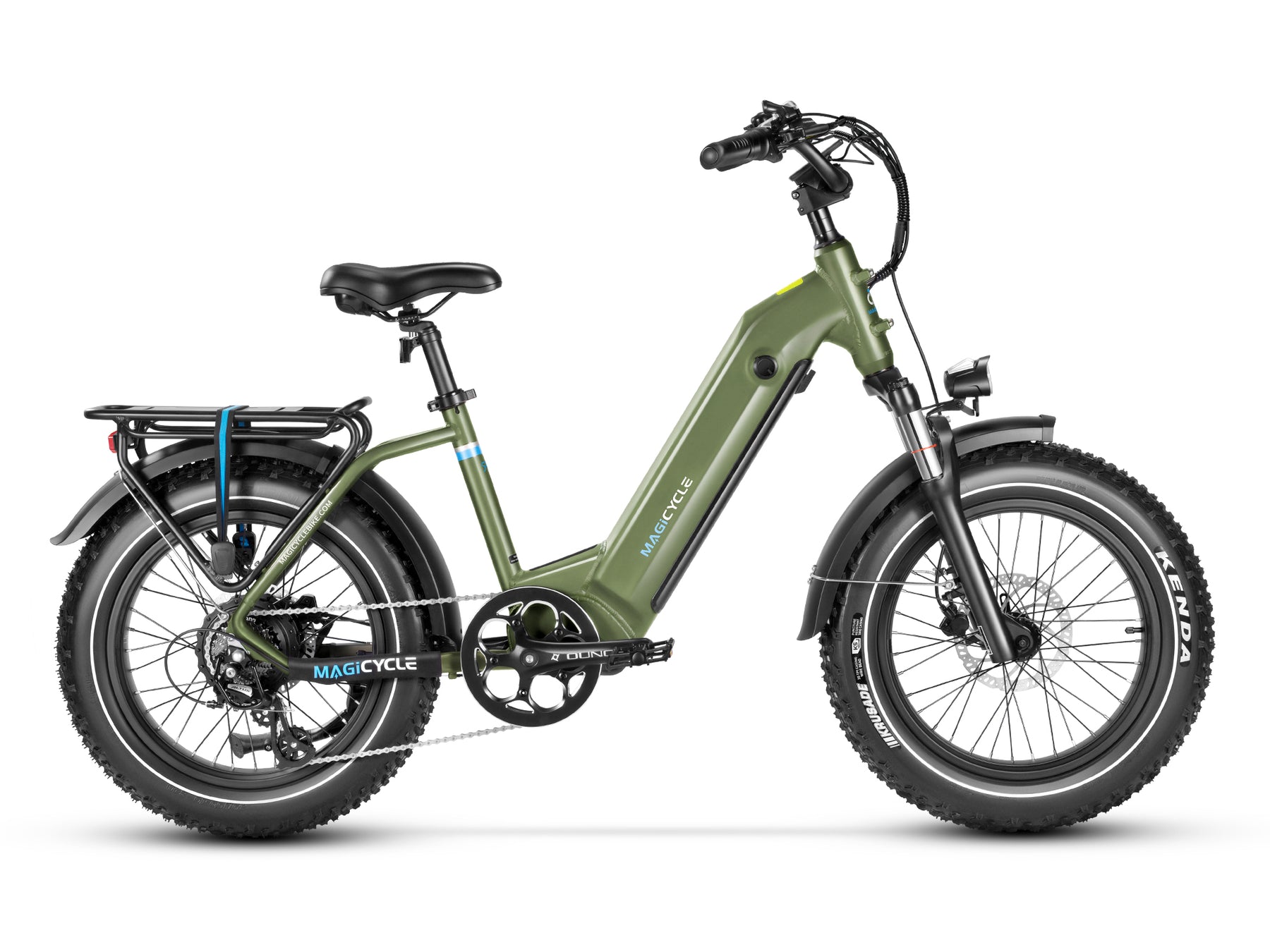

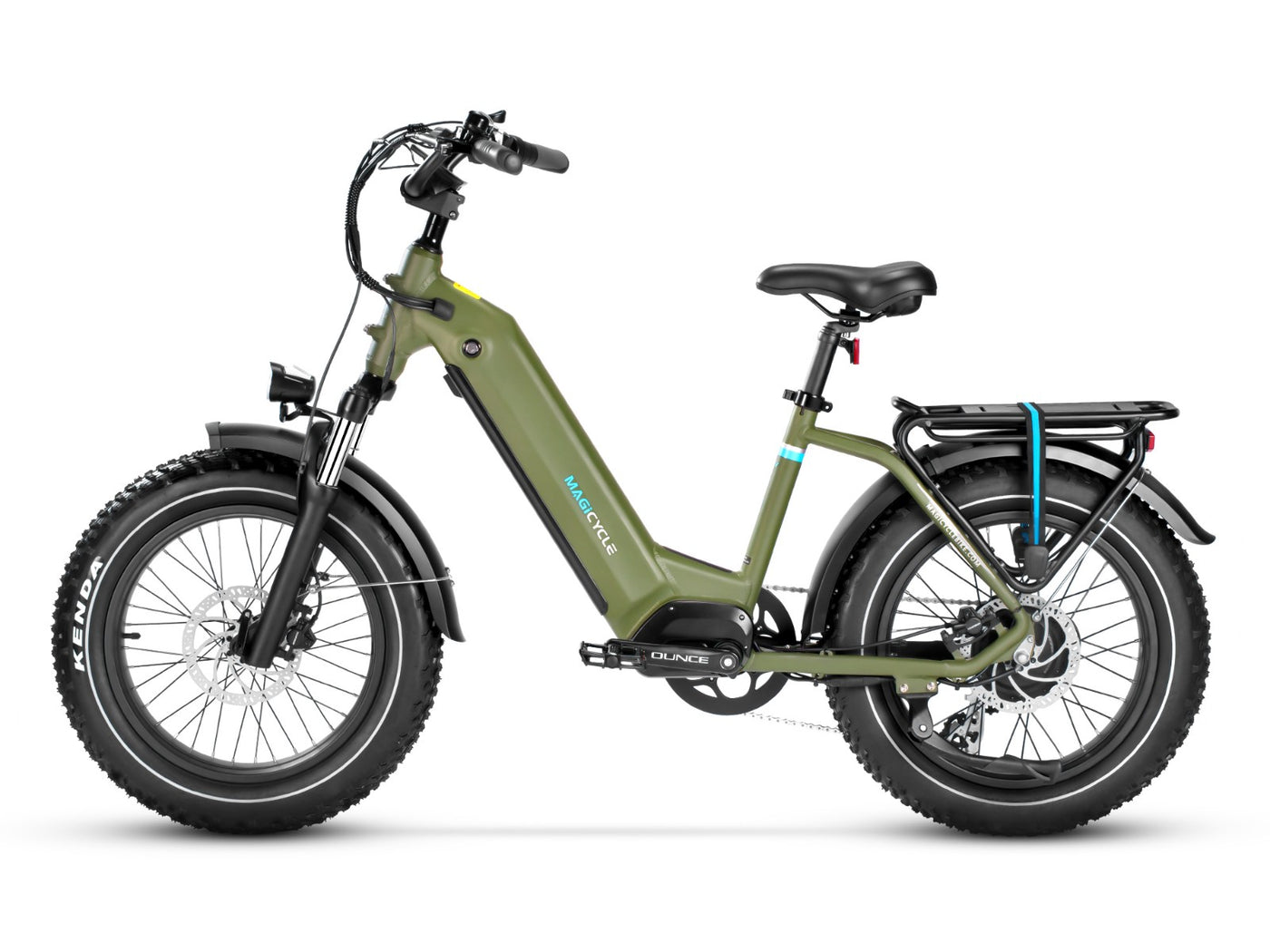

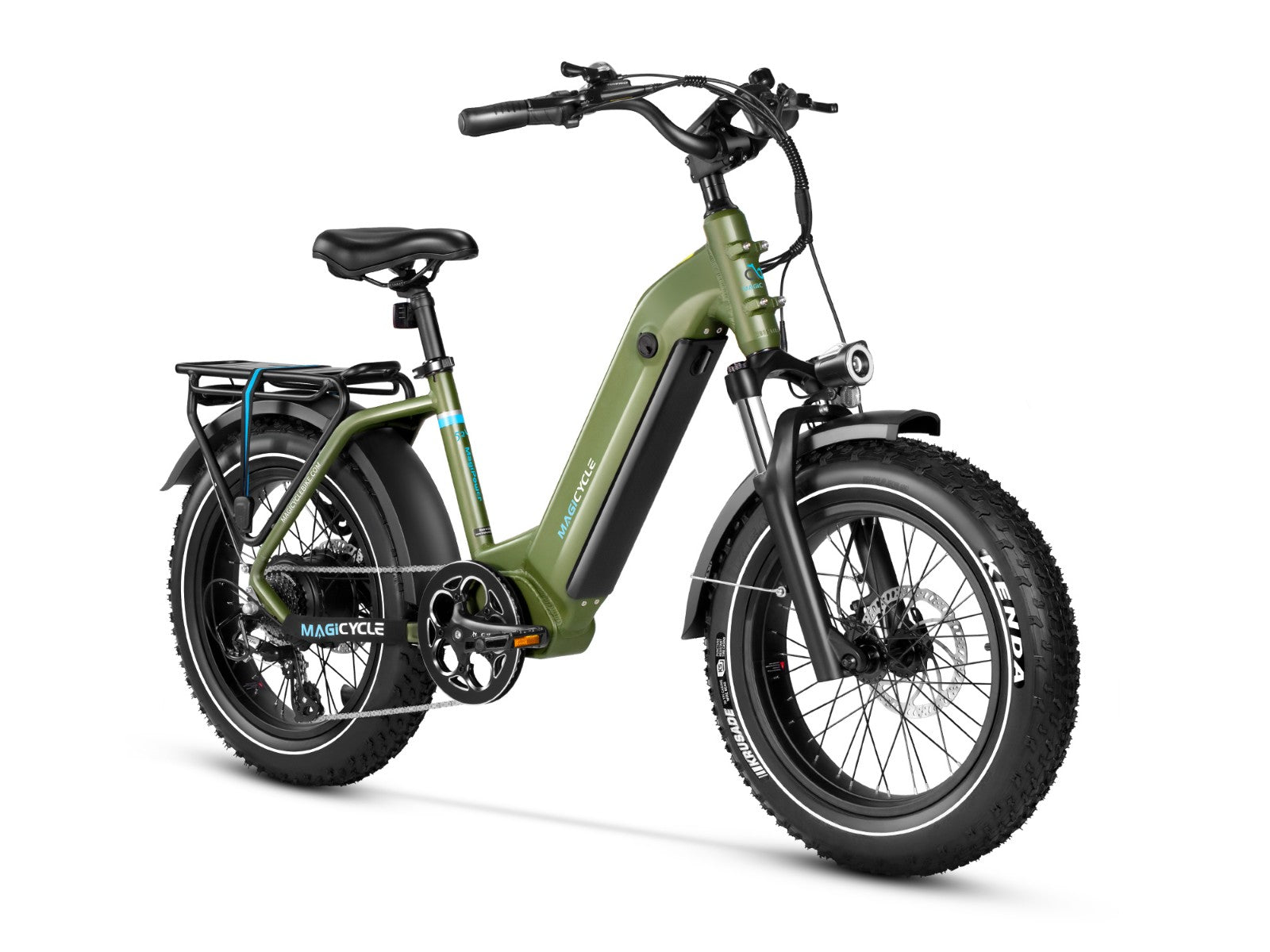

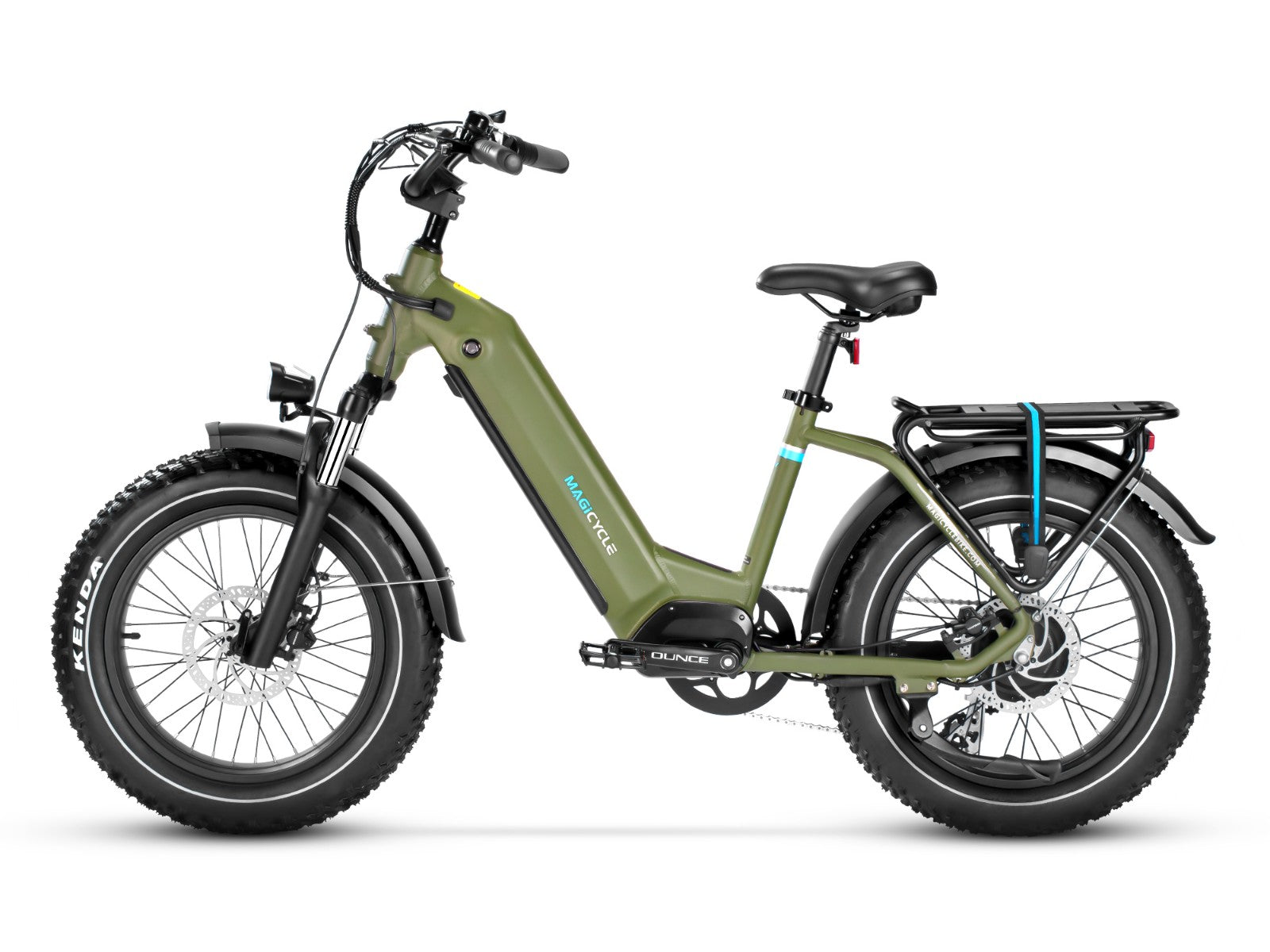

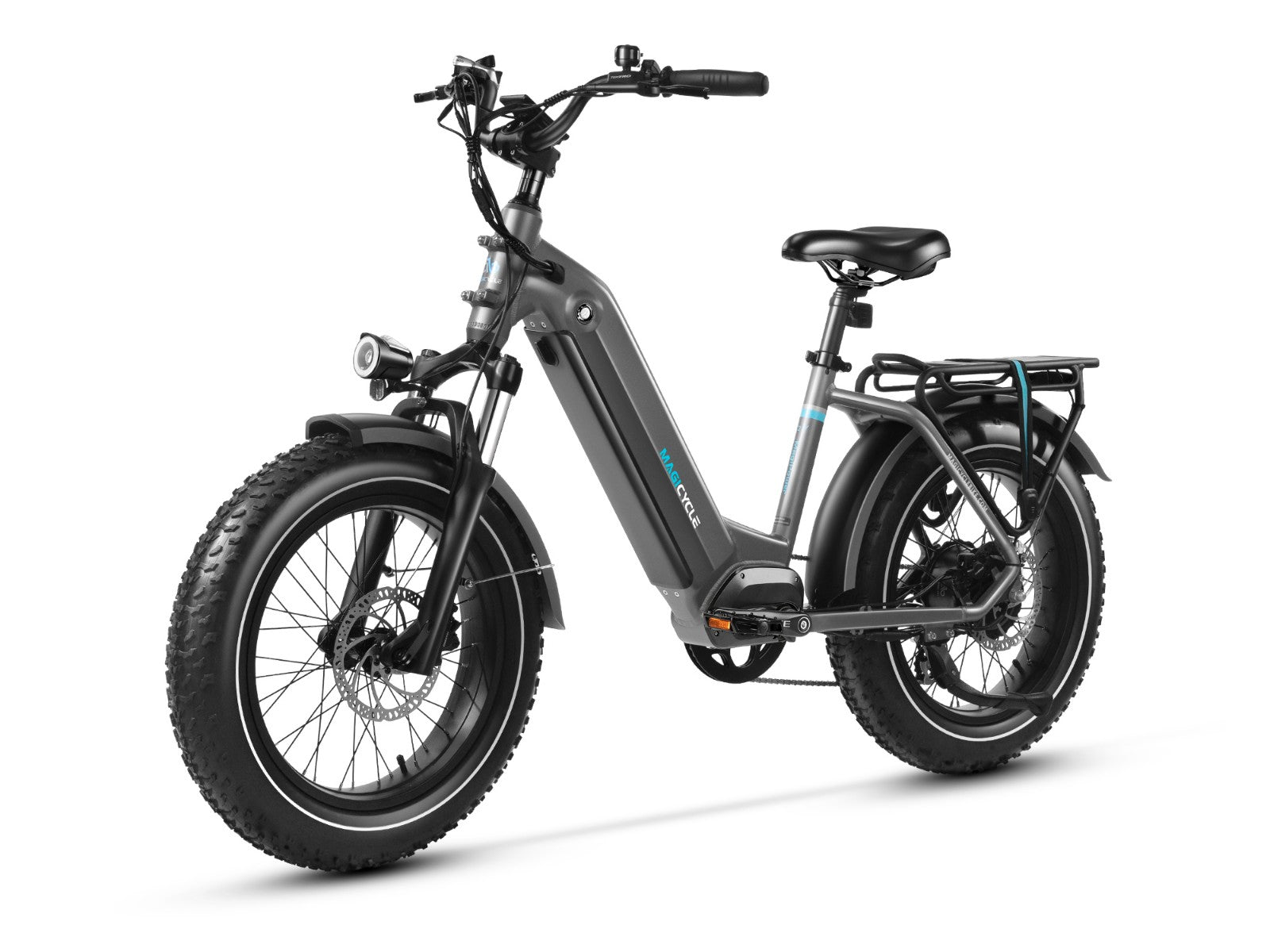

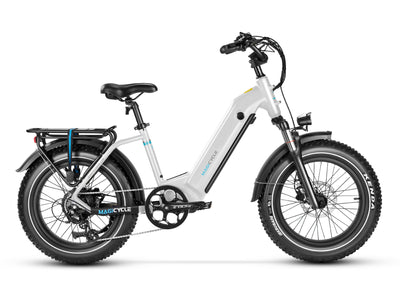

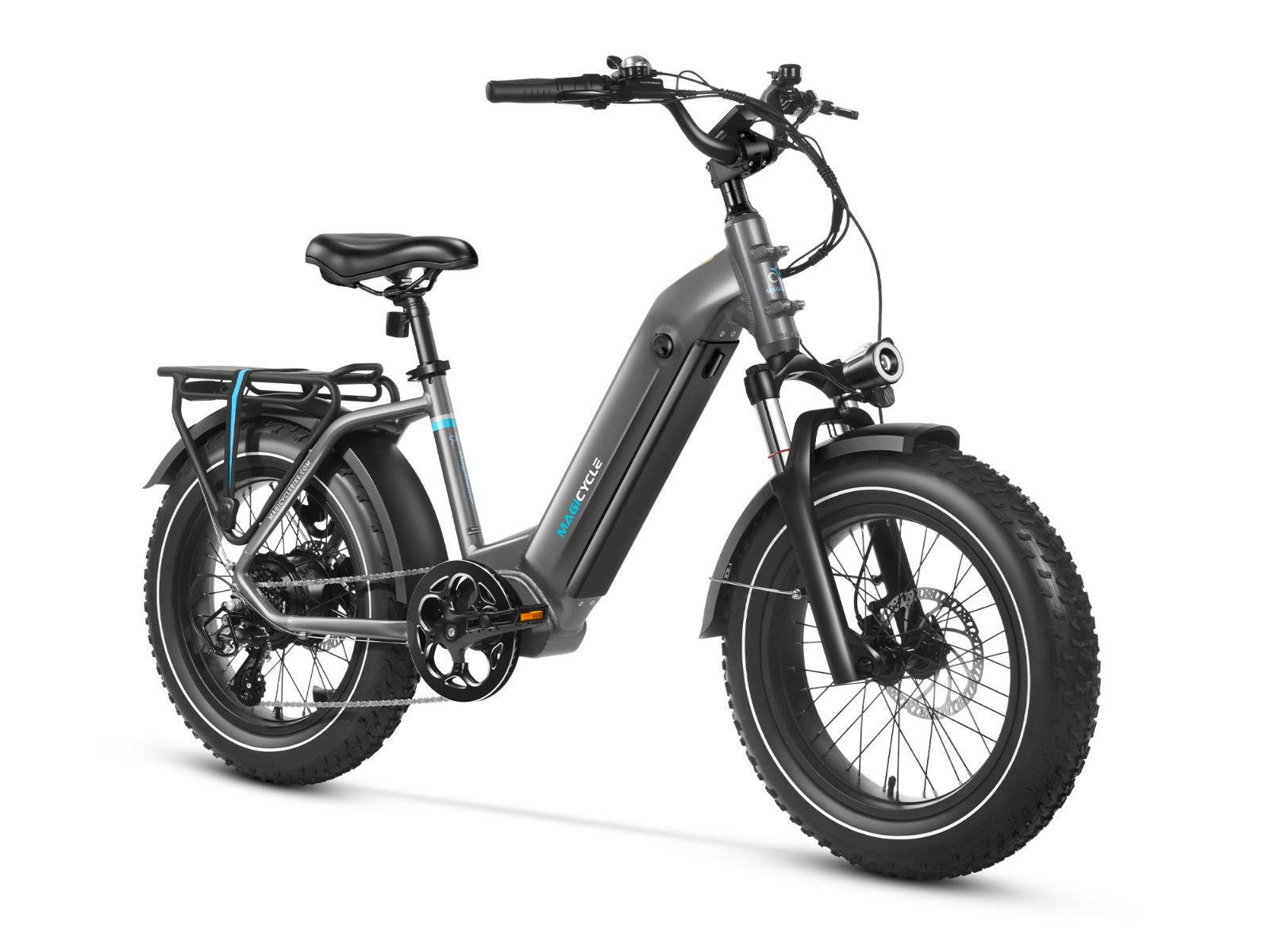

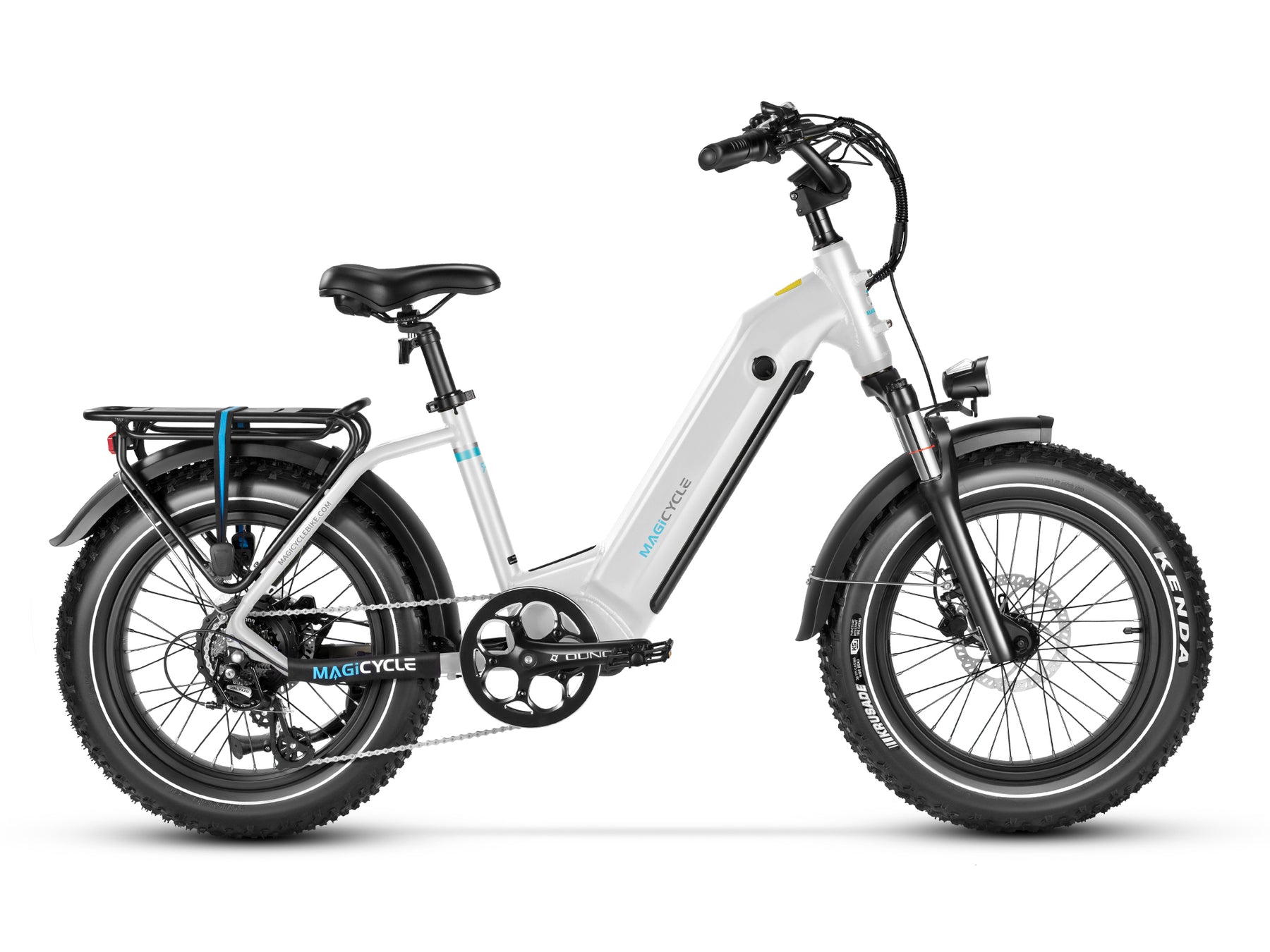

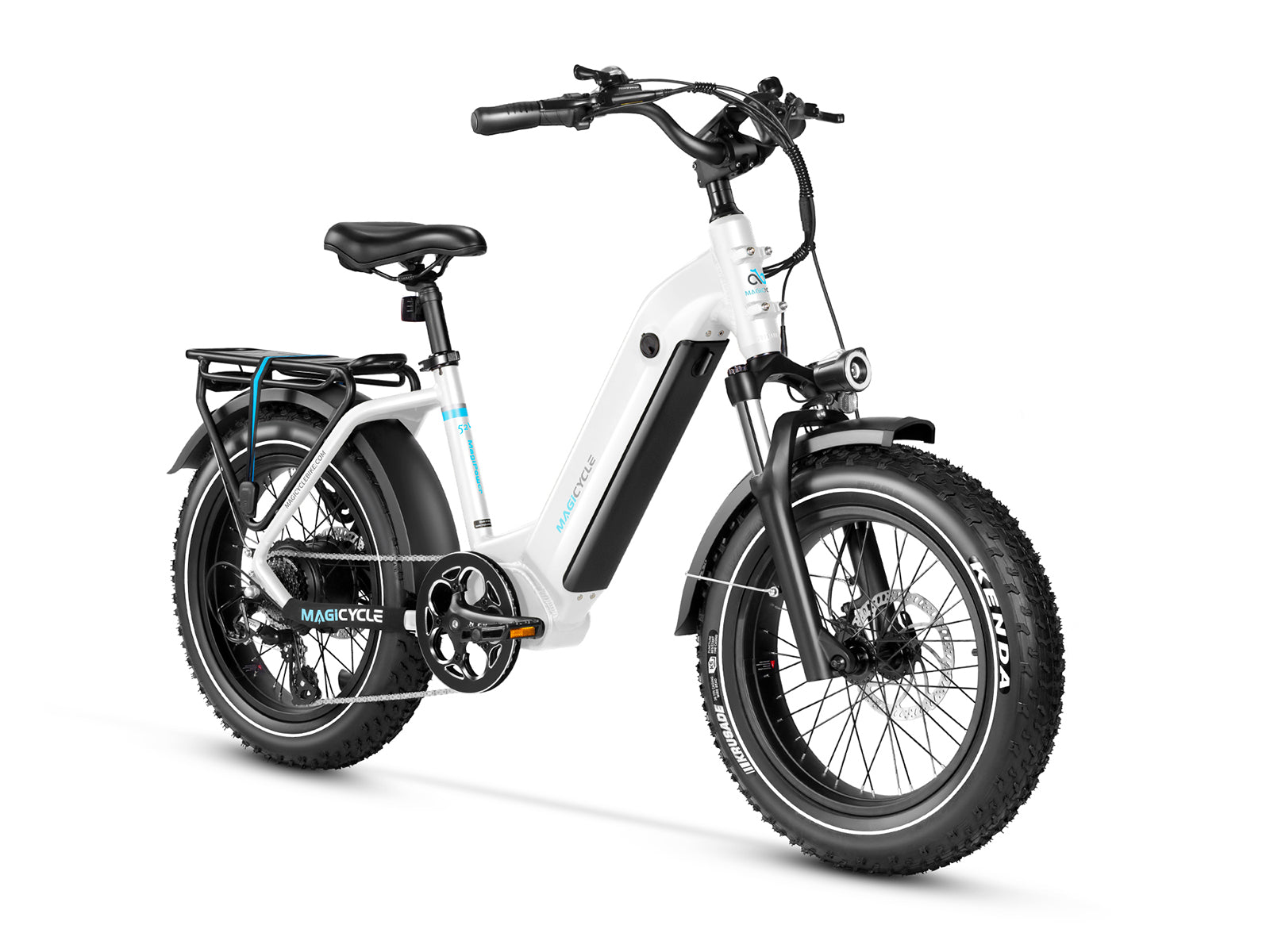

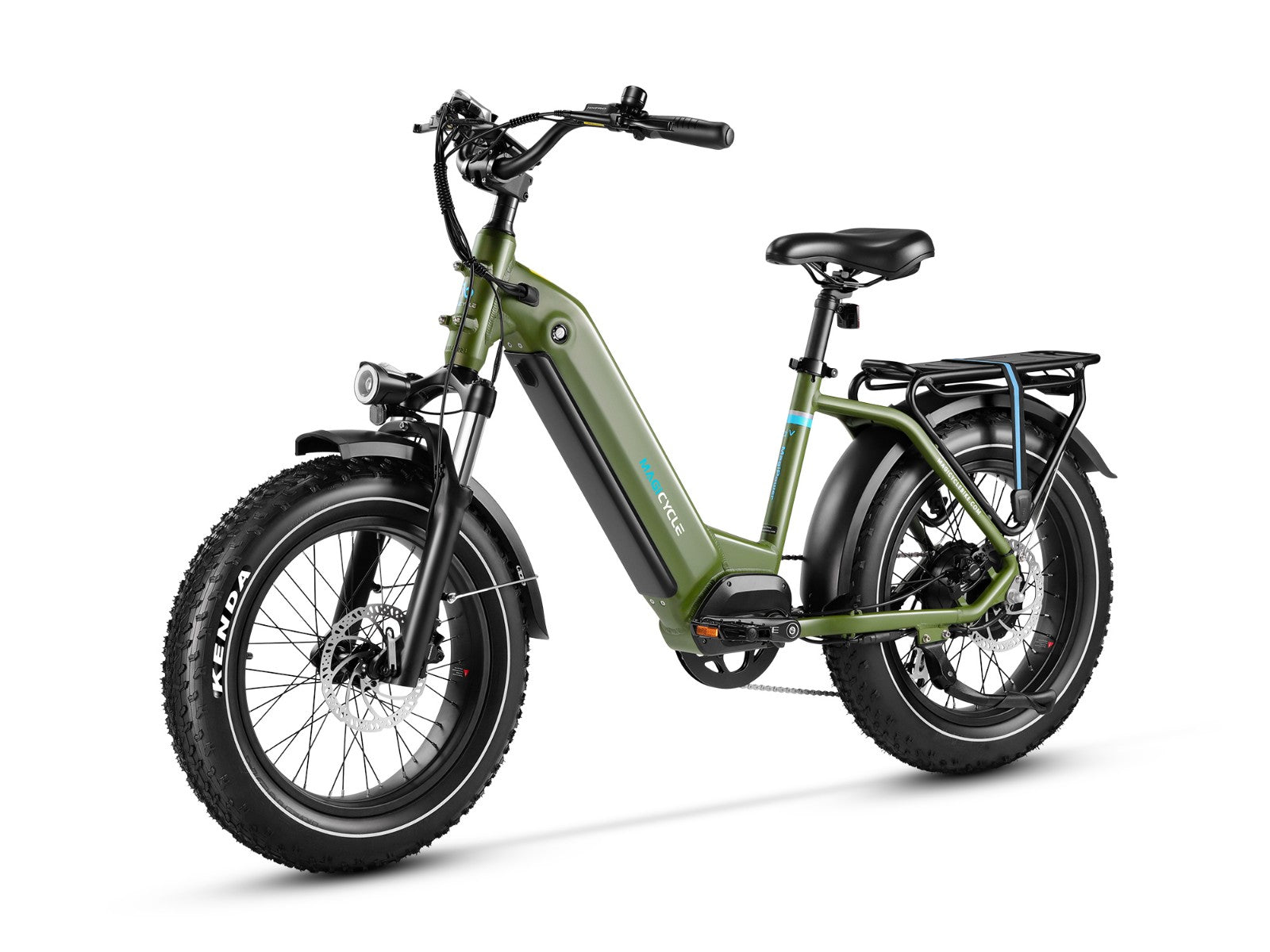

MAGICYCLE Ocelot Pro Long Range Step Thru Fat Tire - Electric Bike
MAGICYCLE Ocelot Pro Various heights can be adjusted. The Ocelot Pro is equipped with adjustable seats that can be freely tailored between a height of 4 '10 "and 6' 2" (148 cm - 187 cm). Almost everyone can find the most suitable riding position by simply adjusting the seat.
Features
- Tailor-fit for various height: Various heights can be adjusted. The Ocelot Pro is equipped with adjustable seats that can be freely tailored between a height of 4'10" and 6'2" (148 cm - 187 cm). Almost everyone can find the most suitable riding position by simply adjusting the seat.

- Long Range Electric Bikes: A single charge can last up to 60 miles on purely electric power and over 80 miles with pedal assist. Get on Magicycle Ocelot Pro and have a fun trip with your friends this weekend.

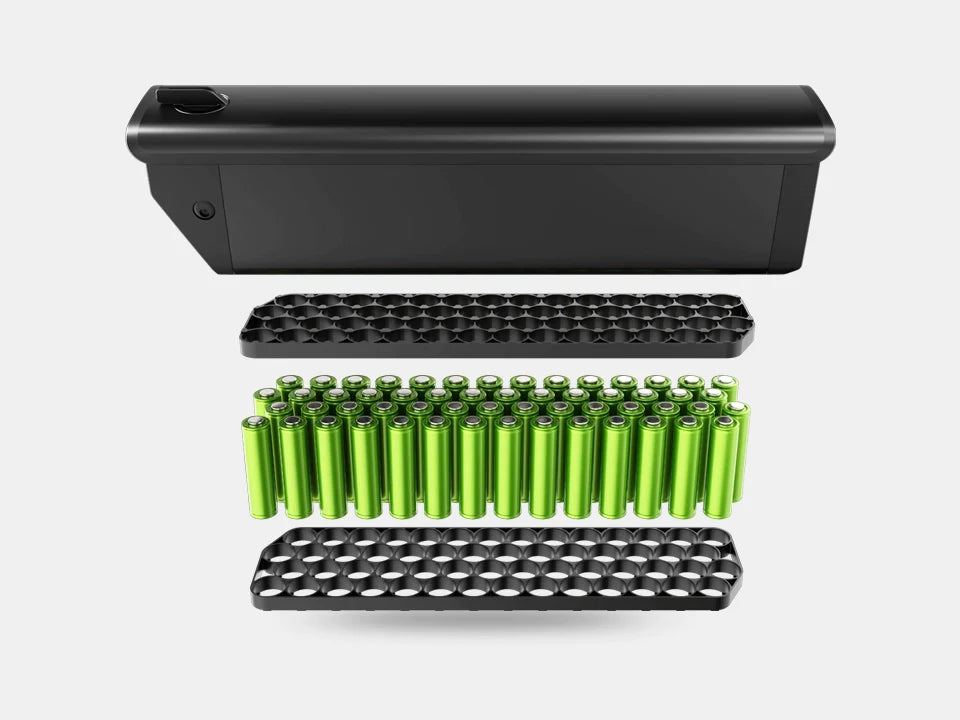

- 52V 20Ah Large- Capacity LG Lithium Battery: Magicycle Ocelot Pro combines the new 52V 20Ah LG lithium battery technology with 56 5000mAh single cells capacity in larger size. Compared with 18650 cells, this 21700 cell efficiently improves the range, stability,and safety of Magicycle ebikes.

- Safe and Steady: The innovative frame design leads to a stronger downtube strength that most ebike brands have yet to achieve. Combined with hydraulic disc brakes, you could keep balanced without shaking violently while riding downhill or off-road

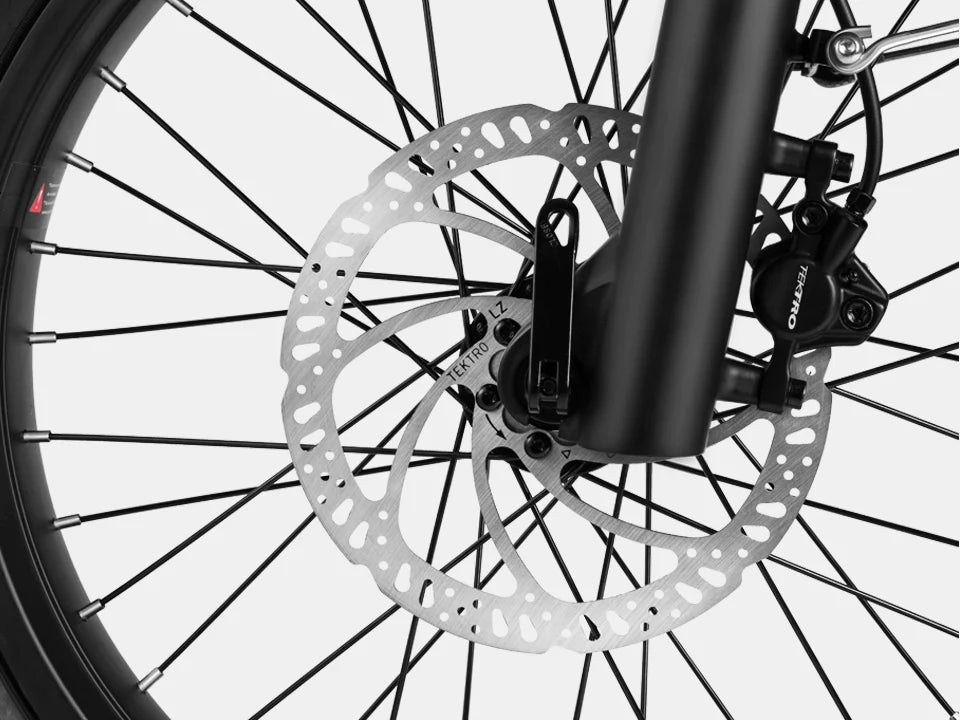

- Hydraulic Disc Brakes: The Tektro 180mm hydraulic disc brakes provide ample stopping power even in the harshest condition super sensitive brakes make even steep slopes a piece of cake.

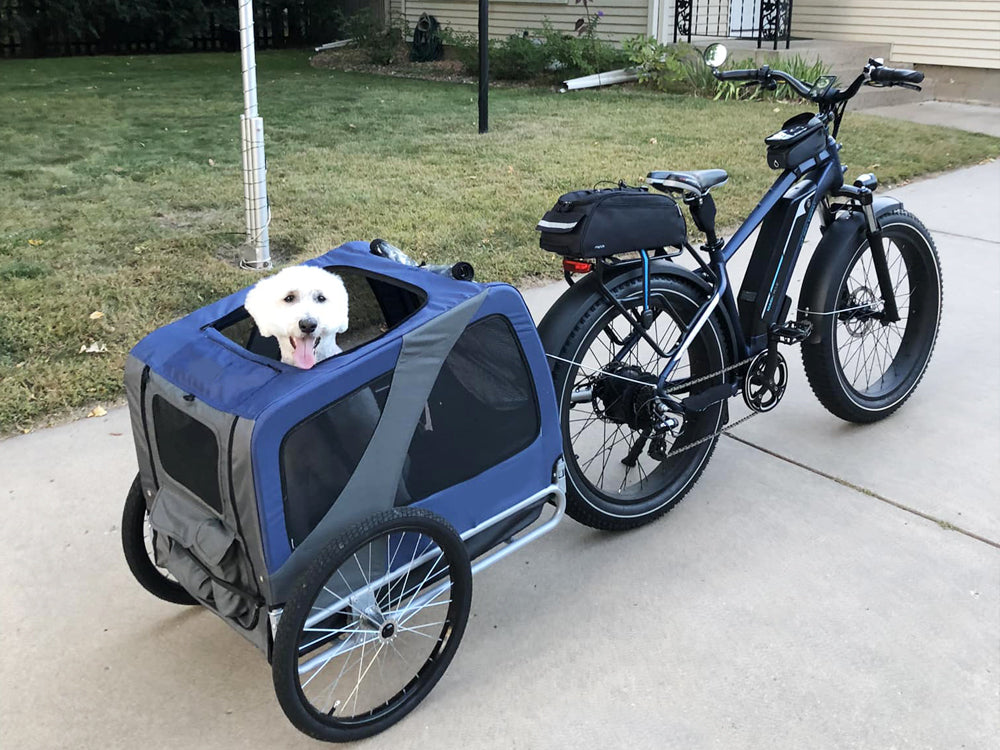

- Pets Companion: Bring you lovely pets together on Ocelot Pro to embrace exploration. This time, you will be able to catch up and run with them let your pets feel your love.

Additional Features
Battery box

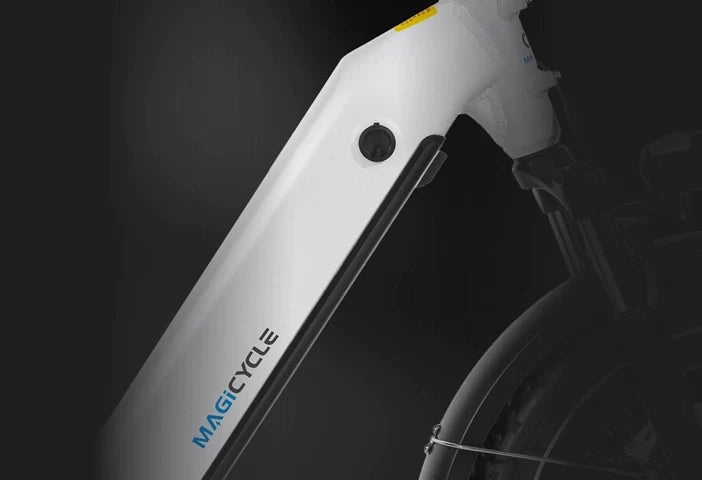

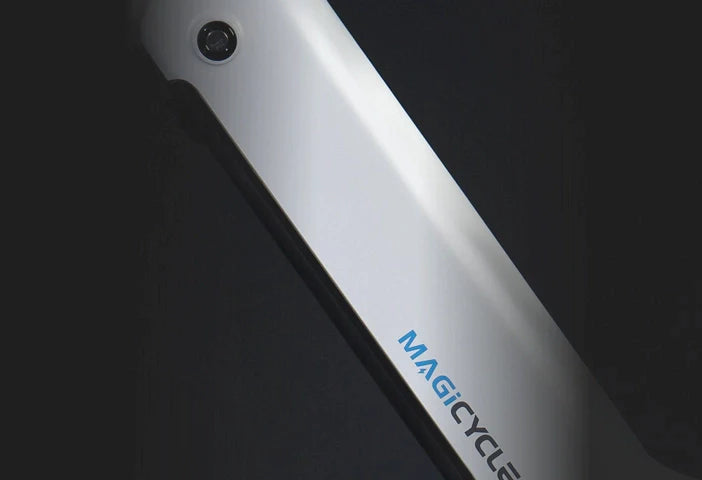

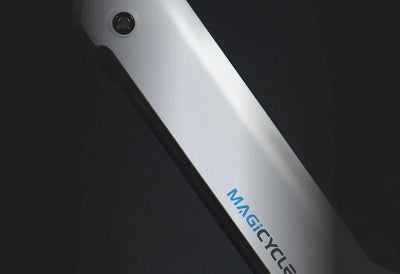

- Magicycle: The hidden battery box design is adopted which is integrated with the down tube of the frame. A double lock design is adopted, one lock is anti-theft, and the other lock is anti-fall.
- Others: The appearance is not beautiful and the battery box is easy to fall off when riding on severe off-road roads.
- What are the Pros?: The appearance is more beautiful the front and rear center of gravity of the vehicle is uniform and the body is more compact, the wheelbase of the front and rear wheels is effectively controlled and the handling is better, safer, and safer to prevent the battery box from falling off when the battery is riding on violent off-road roads

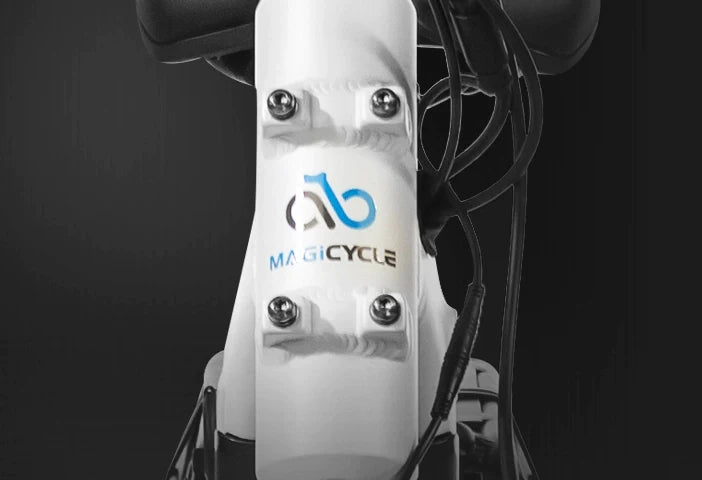

Vegetable Basket Mounting Bracket
- Magicycle: Unibody design bracket
- Others: Welding brackets and the appearance after sticking to the head tube are not beautiful
- What are the Pros?: Better strength and better appearance

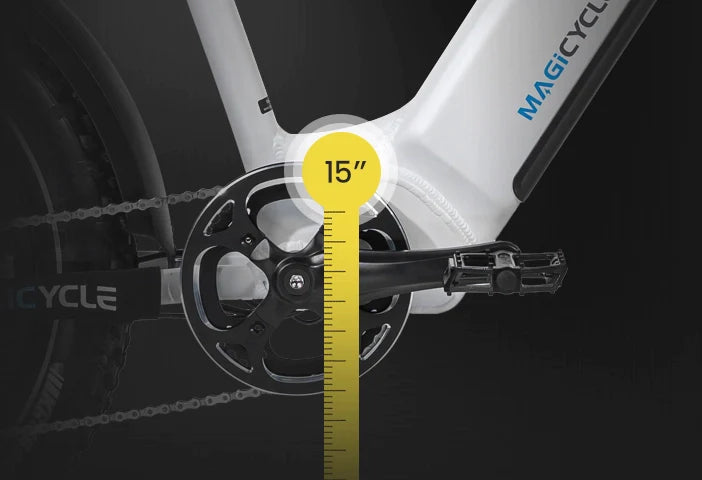

Standover Height
- Magicycle: The span height is only 15.35 from the ground
- Others: ≥15.35”
- What are the Pros? Easier to cross easier to get on and off

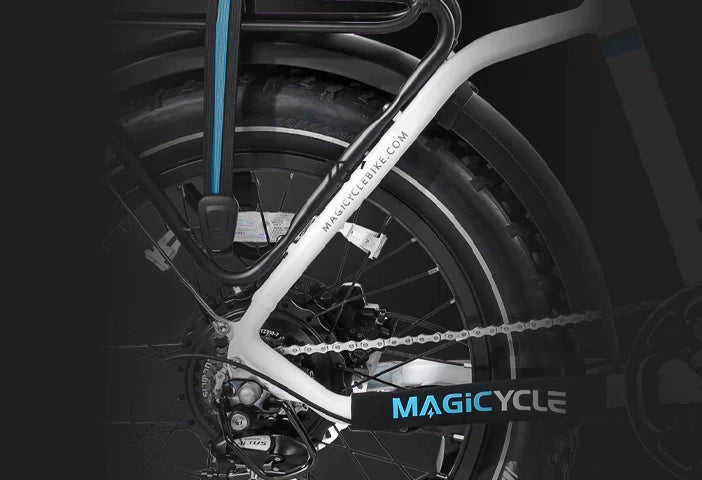

Seat Stay & Chain Stay
- Magicycle: Pentagonal diamond section customized die opening, better rigidity, and strength
- Others: Common male mold square design. Cheap pipe materials on the market
- What are the Pros?: High torsional strength and good body rigidity. Comfortable and stable riding with easy and sensitive control

Controller Installation Position
- Magicycle: The controller box and the frame are welded as a whole and the controller is installed in an independent closed aluminum alloy controller box
- Others: Independent box outside the body, weak protection for the controller
- What are the Pros? The design of the whole bicycle has a strong sense of unity, the appearance is beautiful and simple, and the controller is well protected from external impact and damage

Down Tube
- Magicycle: Multi-cavity variable diameter oil injection molding process, the wall thickness is designed to be 4.0mm-5.0mm process plan.
- Others: The industry usually has a thickness of only 3mm and is a single cavity.
- What are the Pros? Solve the problems that the strength of the industry male model down tube is not enough, the riding frame is soft and the handlebar shakes the rear wheel when going downhill.

Specifications
- Battery: 52V 20Ah LG lithium battery
- Charger: Short-circuit proof 3.0A fast smart charger
- Range: 60-80 miles
- Controller: 52V 750W FOC smart controller, Current Range 7-22Ah (IPX8)
- Hub Motor: 750W brushless gear motor

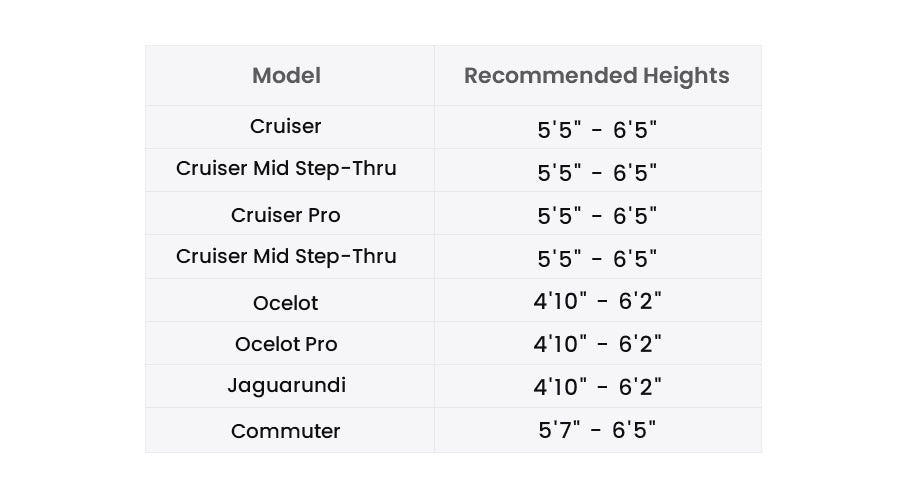

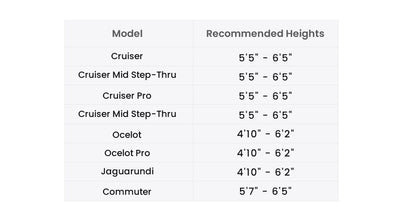

- Recommended Rider Heights: 4'10" - 6'2"

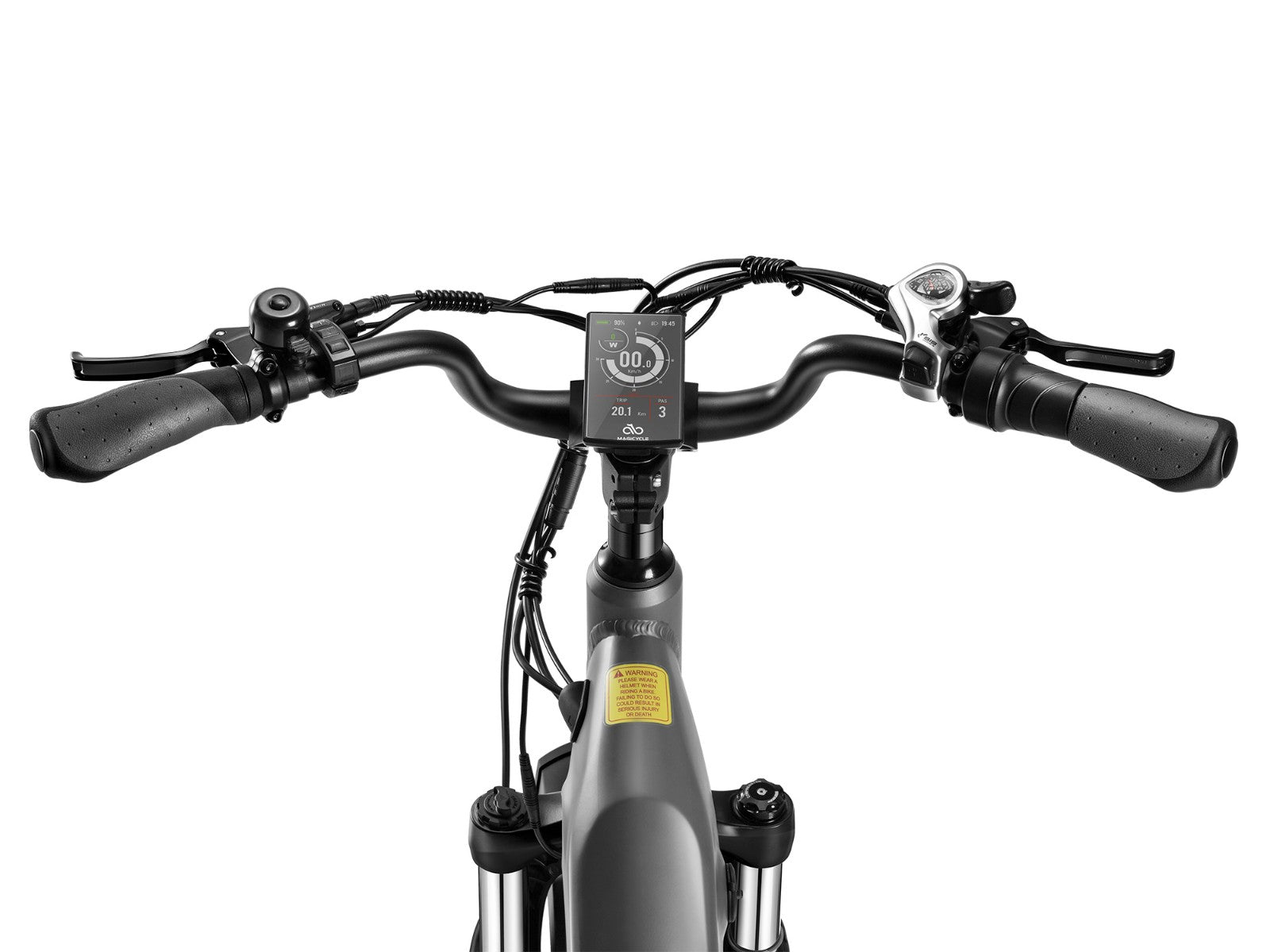

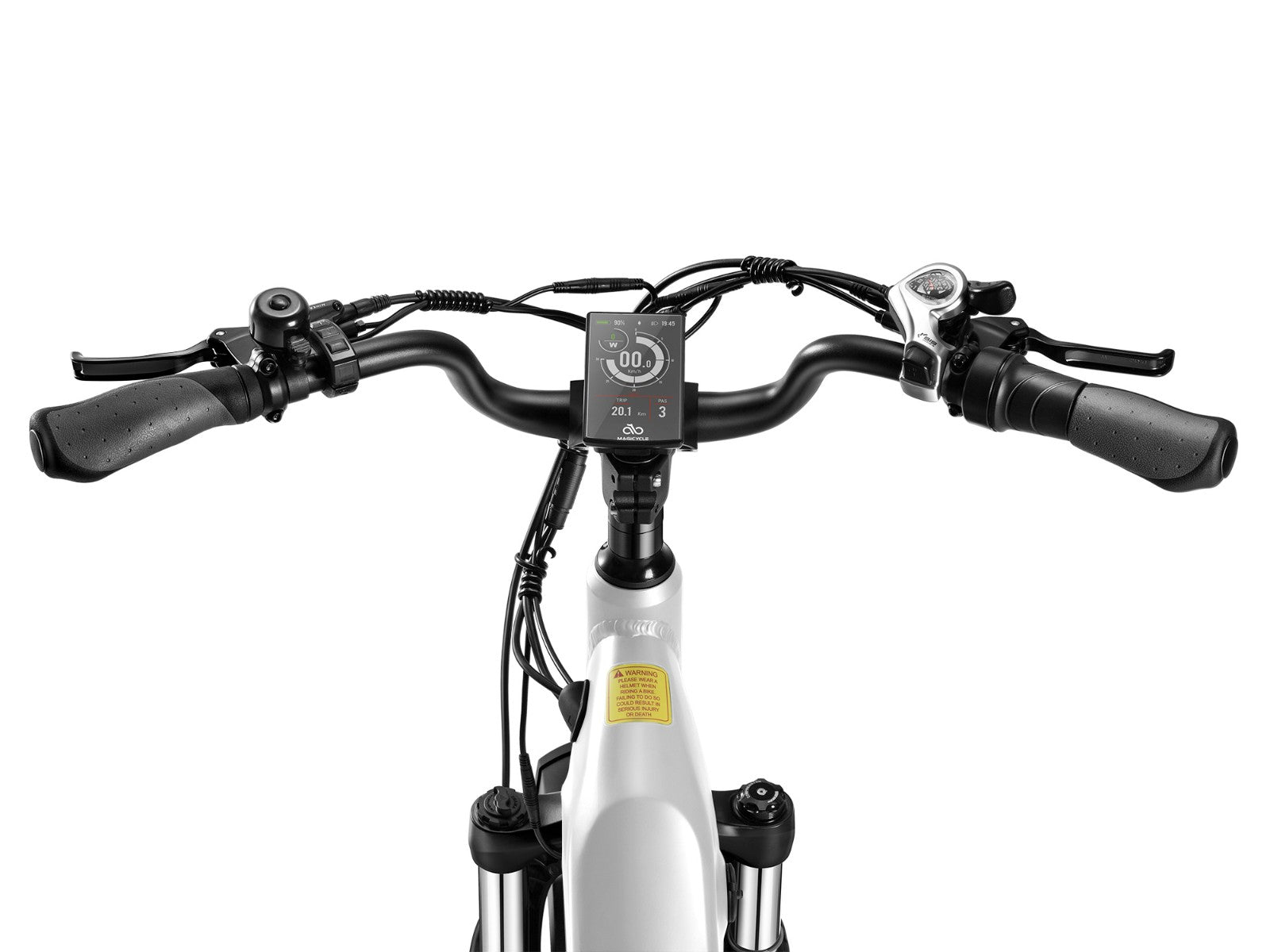

- Display: Color LCD Display with USB Charging
- Charging Time: 4 - 7Hours
- Total Payload Capacity: 350lbs
- Weight: 73lbs/33kg
- Frame size: 20"
- Pedal: Assist Intelligent 7 levels pedal assist with 12 magnet cadence sensor
Components
- Tires: Kenda 20"x4.0"
- Front Fork: Alloy Hydraulic lockout suspension fork
- Brake Lever: Aluminum alloy comfort grip levers with motor cutoff switch
- Throttle: Half twist throttle
- Lights: Integrated front and brake lights
- Pedal: Wellgo alloy pedal with reflectors
- Freewheel: Shimano-14-28T BROWN/BK
- Bike Frame: 20" 6061 Aluminum Frame
- Brake: Tektro 180mm Hydraulic Disc Brakes
- Front Light: 6V LED light
- Chain: KMC chain
- Saddle: Super Soft Cushion
- Stem: MA-400 SSABK
- Seat Post Diameter: 30.9mm length 300mm

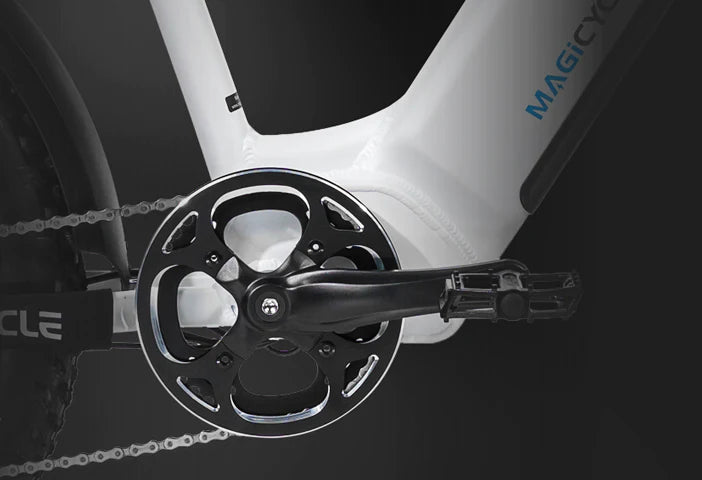

- Crank: 48T,170mm forged alloy,dual-sided bashguard
- Kickstand: Heavy duty aluminum
- Gearing: Shimano 7 speed gear shift system
- Spokes: 13 Gauge on the front / 12 Gauge on the back

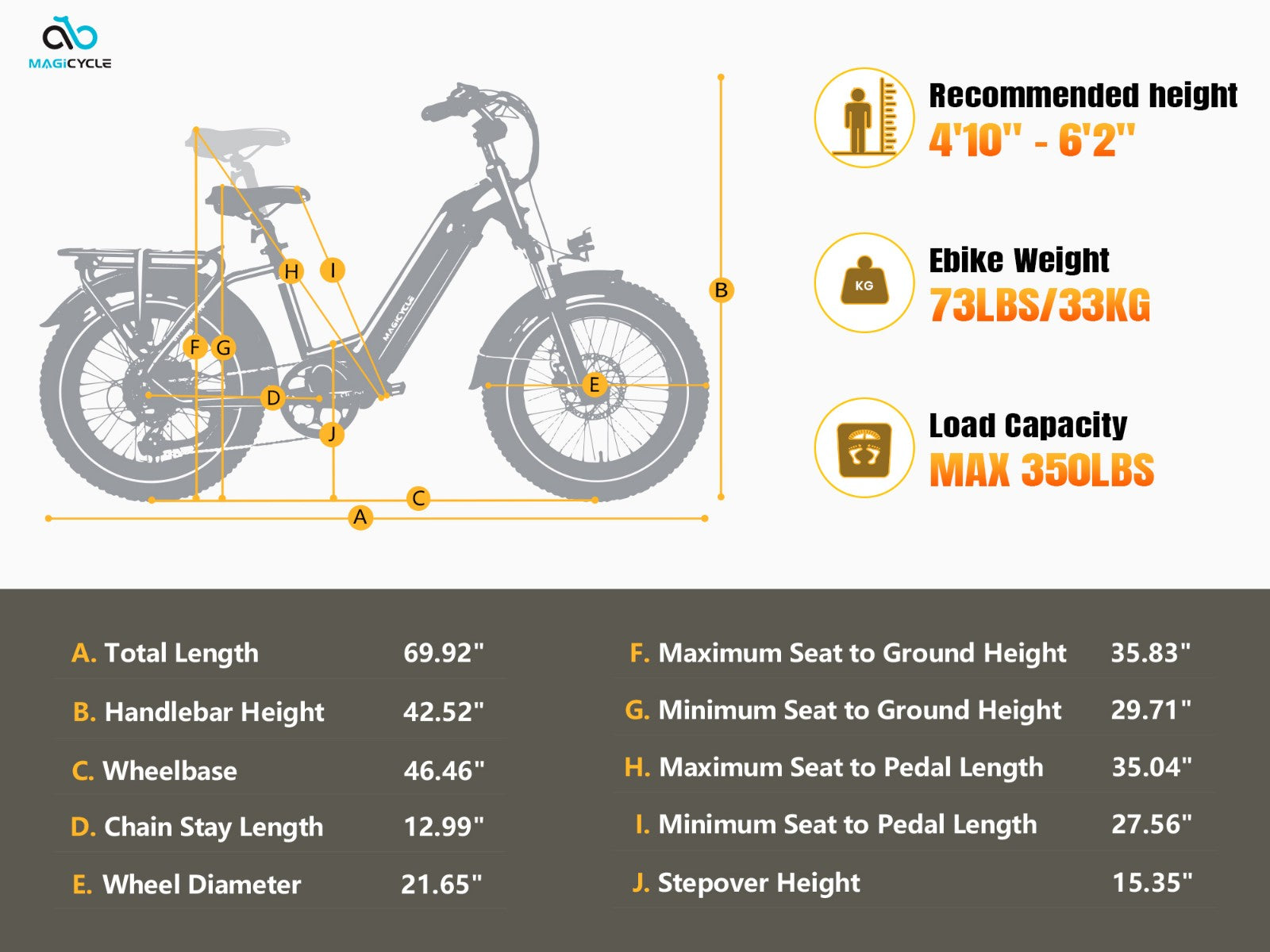

- A -- Total Length: 69.92"
- B -- Handlebar Height: 42.52"
- C -- Wheelbase: 46.46"
- D -- Chain Stay Length: 12.99"
- E -- Wheel Diameter: 21.65"
- H -- Maximum Seat to Ground Height: 35.83"
- I -- Minimum Seat to Ground Height: 29.71"
- J -- Maximum Seat to Pedal Length: 35.04"
- K -- Minimum Seat to Pedal Length: 27.56"
- L -- Standover Height: 15.35"
The Return Policy is 15 Days compared to the 30 Days for other Brands.
